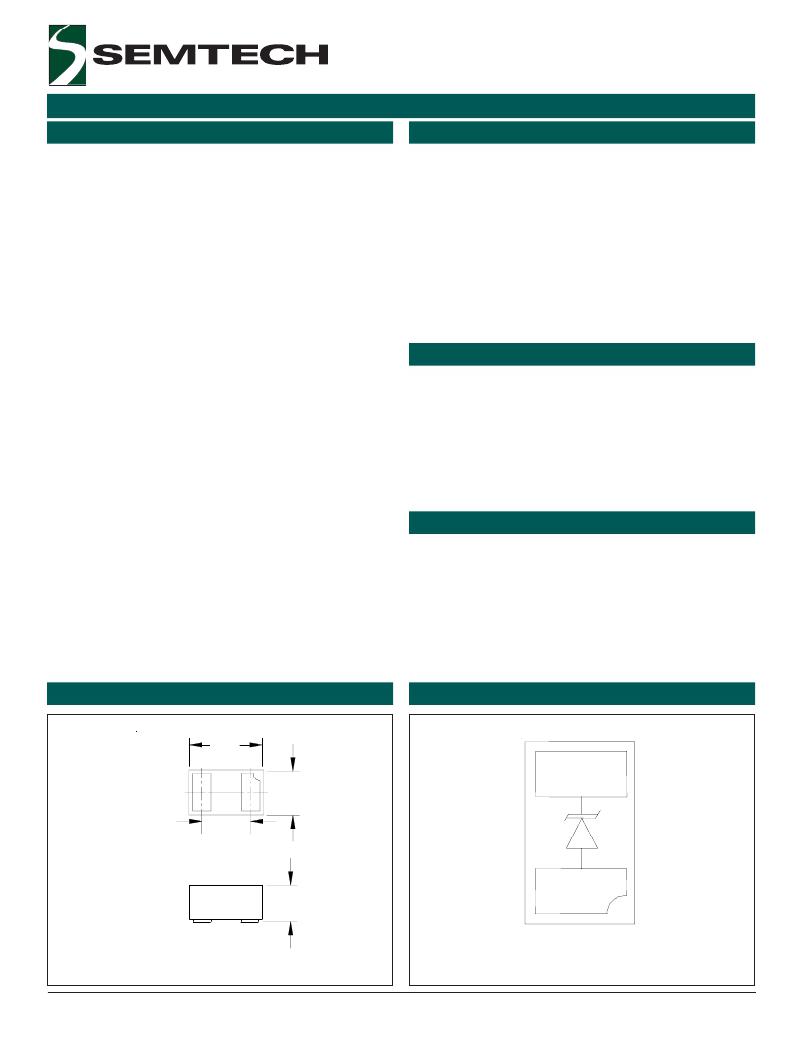

uClamp2401T
Low Profile μClamp TM
1-Line ESD protection
PROTECTION PRODUCTS - MicroClamp TM
The μClamp series of TVS arrays are designed to pro-
Description
TM
tect sensitive electronics from damage or latch-up due
to ESD. It is designed to replace multilayer varistors
(MLVs) in portable applications such as cell phones, note-
book computers, and other portable electronics. It fea-
tures large cross-sectional area junctions for conducting
high transient currents. They offer desirable character-
istics for board level protection including fast response
time, low operating and clamping voltage, and no device
degradation.
The μClamp TM 2401T is in a 2-pin, RoHS/WEEE compli-
ant, SLP1006P2T package. It measures 1.0 x 0.6 mm
with a nominal height of only 0.4mm. The leads are
spaced at a pitch of 0.65mm and are finished with
lead-free NiPdAu. Each device will protect one line
operating at 24 volts. It gives the designer the flexibil-
ity to protect single lines in applications where arrays
are not practical. They may be used to meet the ESD
immunity requirements of IEC 61000-4-2, Level 4
(±15kV air, ±8kV contact discharge). The combination
of small size and high ESD surge capability makes
them ideal for use in portable applications such as
cellular phones, digital cameras, and MP3 players.
Dimensions
1.0
0.60
0.65
0.40
Nominal Dimensions (mm)
Features
Transient protection for data lines to
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
Cable Discharge Event (CDE)
Ultra-small package (1.0 x 0.6 x 0.4mm)
Protects one data line
Low clamping voltage
Working voltage: 24V
Low leakage current
Solid-state silicon-avalanche technology
Mechanical Characteristics
SLP1006P2T package
RoHS/WEEE Compliant
Nominal Dimensions: 1.0 x 0.6 x 0.4 mm
Lead Finish: NiPdAu
Molding compound flammability rating: UL 94V-0
Marking : Marking code, cathode band
Packaging : Tape and Reel
Applications
Cellular Handsets & Accessories
Personal Digital Assistants (PDAs)
Notebooks & Handhelds
Portable Instrumentation
Digital Cameras
Peripherals
MP3 Players
Schematic & PIN Configuration
SLP1006P2T (Bottom View)
Revision 01/15/2008
1
www.semtech.com
